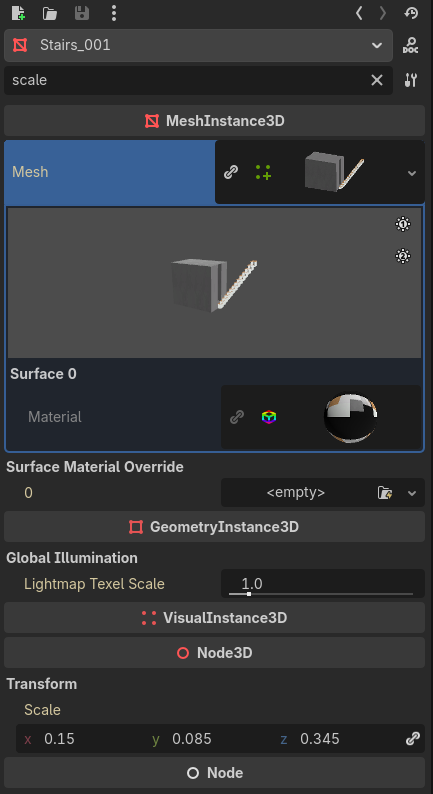

The exported .glb contains non-uniform scales on many MeshInstance3D nodes (for example, the Stairs object imports with a scale of approximately 0.15, 0.085, 0.345 instead of 1,1,1).
This becomes problematic when creating gameplay collision in Godot. If a StaticBody3D/CollisionShape3D is added as a child of one of these imported meshes (or generated automatically using Godot's Mesh → Create Collision tools), the collision inherits the non-uniform scale. In my case this caused incorrect physics behaviour, including a CharacterBody3D being unable to walk up a stair ramp that should have been perfectly walkable.
The workaround is to keep all collision objects outside the imported mesh hierarchy and create a separate collision scene, but that makes the workflow much more cumbersome, especially for large environments.
If possible, it would be very helpful if the asset could be exported with mesh transforms baked so that the imported nodes have a scale of (1, 1, 1). That makes the asset much easier to use in Godot and other game engines where gameplay collision is authored separately from the visual meshes.
I tested the updated GLB in a completely fresh Godot 4 project. The issue is still present.
The GLB itself still contains non-unit scales on mesh nodes. For example, the Stairs node is exported with:
"scale": [0.149999991, 0.085000001, 0.344688237]
Godot is importing the file correctly; these values are already present in the GLB.
Could you check why the exporter is writing non-unit node scales instead of baking the transforms into the mesh geometry? Ideally, each exported mesh node should have a local scale of (1,1,1).
I remember that Windows and walls also had non-uniform scales, so I think you've already solved most of the meshes and maybe only these 3 have escaped :D
← Return to asset pack
Comments
Log in with itch.io to leave a comment.
The .blend file has 219kb and can't be opened.
I wanted to fix the scale of some meshes, that's also a problem I've faced that ends up setting up this asset more cumbersome
It opens fine on blender 5.2.0, I also had a fresh install to try and it worked too. Can you tell me whats the error or what is wrong?
I've downloaded blender 5.2.0 and it opens, I was on 4.x
Thank you for the reply!
The exported
.glbcontains non-uniform scales on manyMeshInstance3Dnodes (for example, theStairsobject imports with a scale of approximately0.15, 0.085, 0.345instead of1,1,1).This becomes problematic when creating gameplay collision in Godot. If a
StaticBody3D/CollisionShape3Dis added as a child of one of these imported meshes (or generated automatically using Godot's Mesh → Create Collision tools), the collision inherits the non-uniform scale. In my case this caused incorrect physics behaviour, including aCharacterBody3Dbeing unable to walk up a stair ramp that should have been perfectly walkable.The workaround is to keep all collision objects outside the imported mesh hierarchy and create a separate collision scene, but that makes the workflow much more cumbersome, especially for large environments.
If possible, it would be very helpful if the asset could be exported with mesh transforms baked so that the imported nodes have a scale of
(1, 1, 1). That makes the asset much easier to use in Godot and other game engines where gameplay collision is authored separately from the visual meshes.I updated the .glb file, can you check now if it works properly?
I tested the updated GLB in a completely fresh Godot 4 project. The issue is still present.
The GLB itself still contains non-unit scales on mesh nodes. For example, the
Stairsnode is exported with:"scale": [0.149999991, 0.085000001, 0.344688237]
Godot is importing the file correctly; these values are already present in the GLB.
Could you check why the exporter is writing non-unit node scales instead of baking the transforms into the mesh geometry? Ideally, each exported mesh node should have a local scale of
(1,1,1).Thank you for having a look!
The non-uniform scales can be found in:
Floor_001
Stairs
Stairs_001
I remember that Windows and walls also had non-uniform scales, so I think you've already solved most of the meshes and maybe only these 3 have escaped :D
Hello, i'm brazilian ... any other form to buy this asset? with payments like PIX from brazil?
Sorry, I only sell this asset on itch.io
Damn it's so great, we got another house for indie horror games. I will buy it for sure when I get an idea to work on :)
Thanks so much for it! I'm excited to use it on my game :D
Thank you:D
